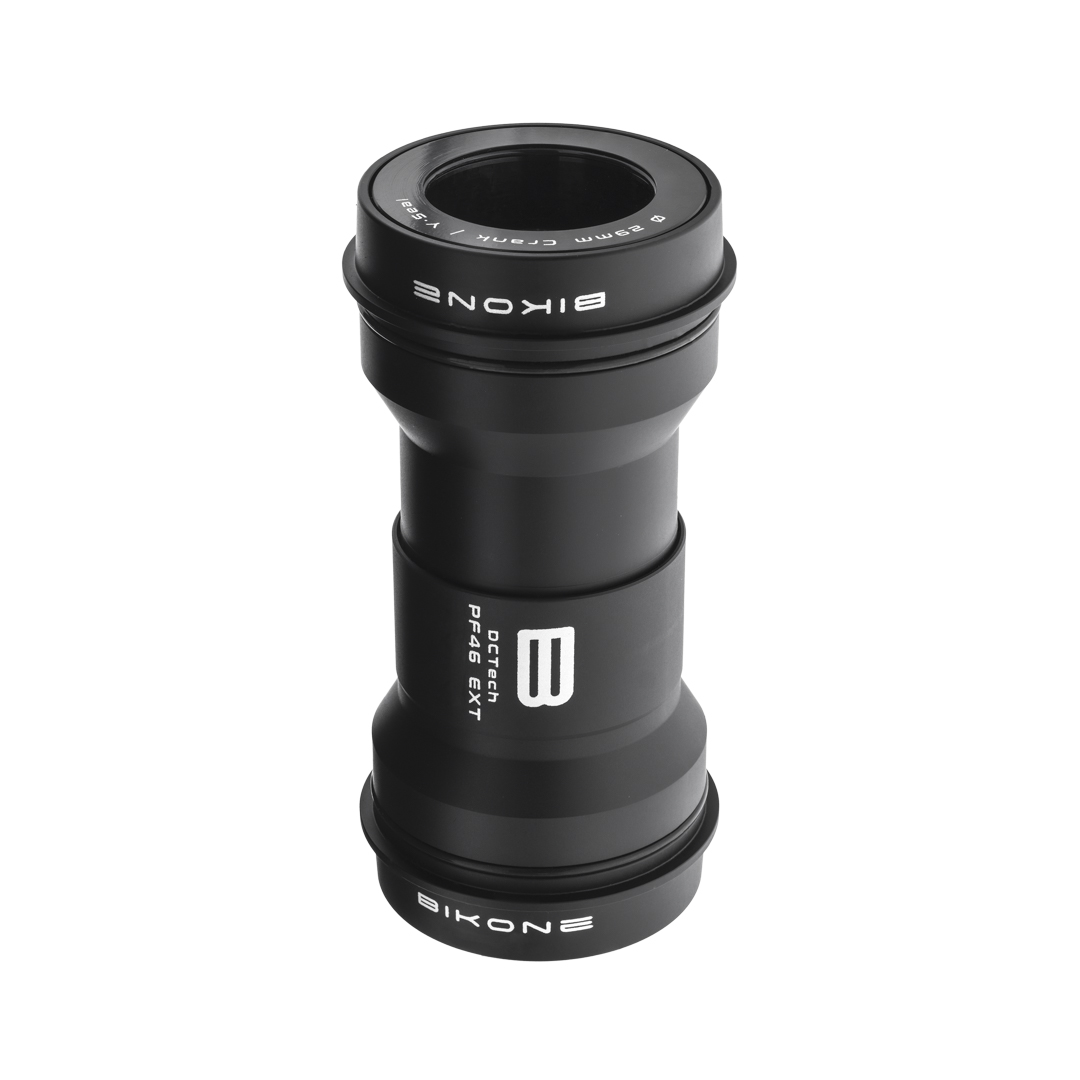

DCTech PF46 External for Sram Dub

DCTech PF46 External for Sram Dub cranks.

Spacers:

• • Two 2 mm spacers
  • One 1 mm spacer

Dub wide cranks require a Dub Wide Adaptor Kit

Assembly specs:

• • Crankset diameter: 29 mm (Sram dub)
  • Frame width: from 68 mm to 73 mm (Compatible with mountain and road bikes).
  • Frame diameter: 46 mm
  • For Pressfit frames

Weight

125 grams

DCTech PF46 External for Sram Dub Characteristics:

• • Dual Cup Technology.  Two aluminium cups that perfectly align bearings on both sides, creating a solid center joint that eliminates any noise or movements issues. Find out more about our technology here.
  • This bottom bracket uses Chronium Steel Bearings (ABEC5 /P5 – 2RS).
  • The cups of our bottom brackets are made from 6061 Aluminium, an  aerospace-grade aluminium with high corrosion resistance on which we apply a T6 treatment. That makes the material harder and more durable, ensuring that our cups mantain top performance over time.
  • Fully sealed. Axial seals on bearings and completely sealed on all surfaces.

Click here to check the compatibility chart between our bottom brackets and bearings.

If you are unsure about the compatibility between your bike and this bottom bracket, please contact customer.support@bikone.com

Lifetime warranty for the cups.

3 year warranty for the bearings.

Check our warranty terms and conditions here.

Please carefully follow the provided use, installation and maintenance instructions on the following link.
